Mold
Design
All

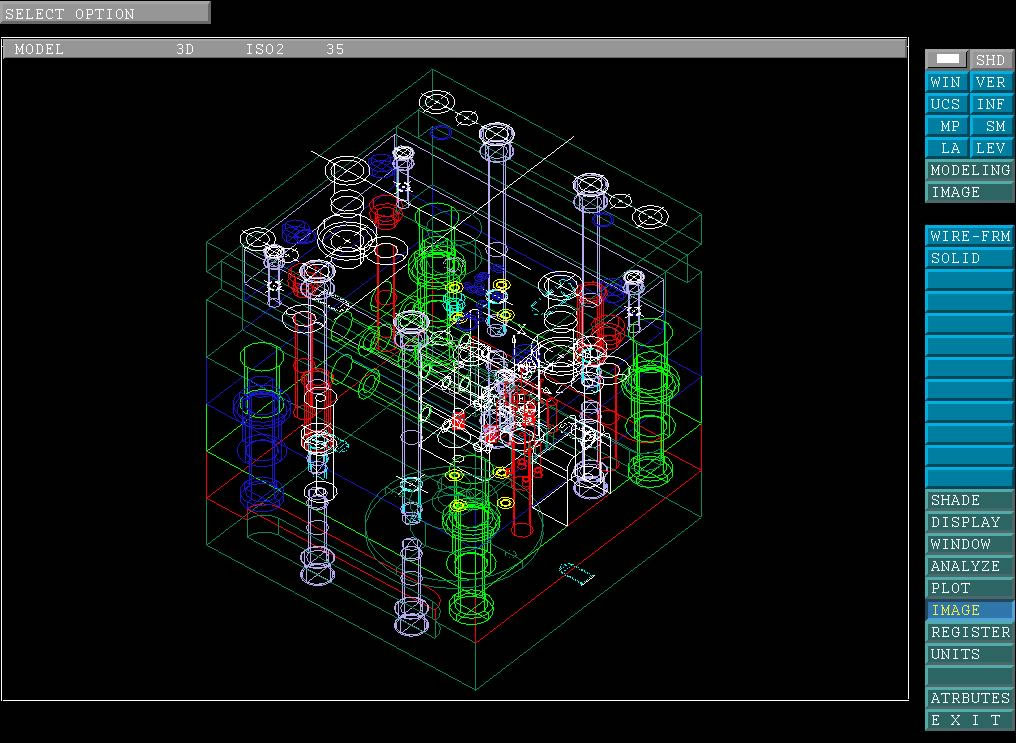

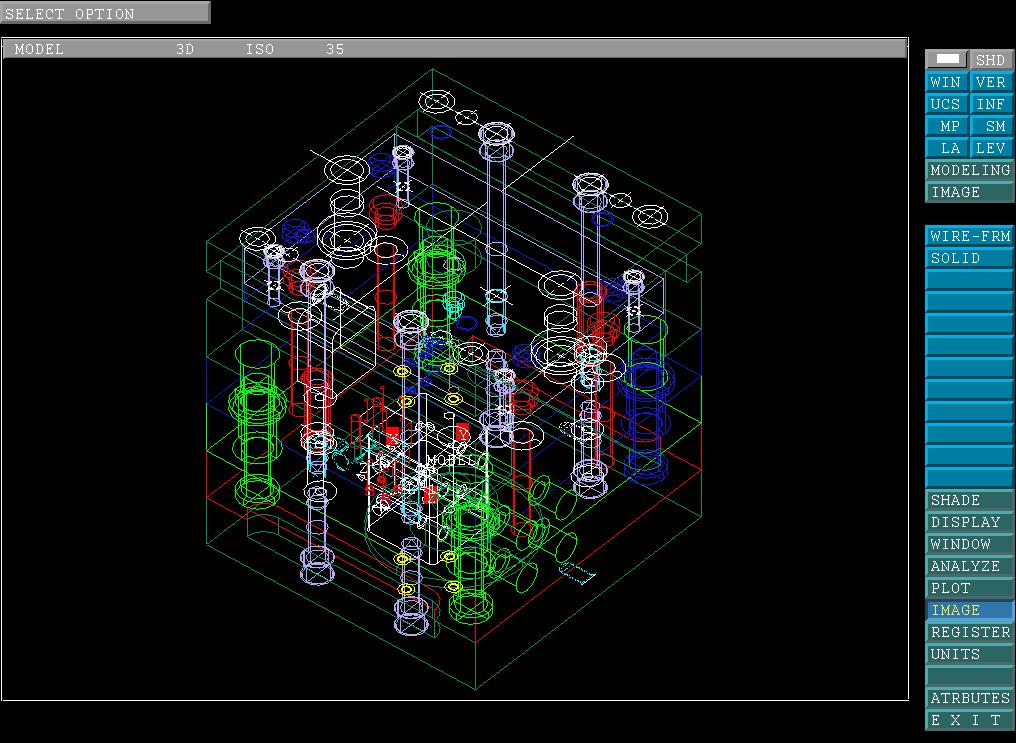

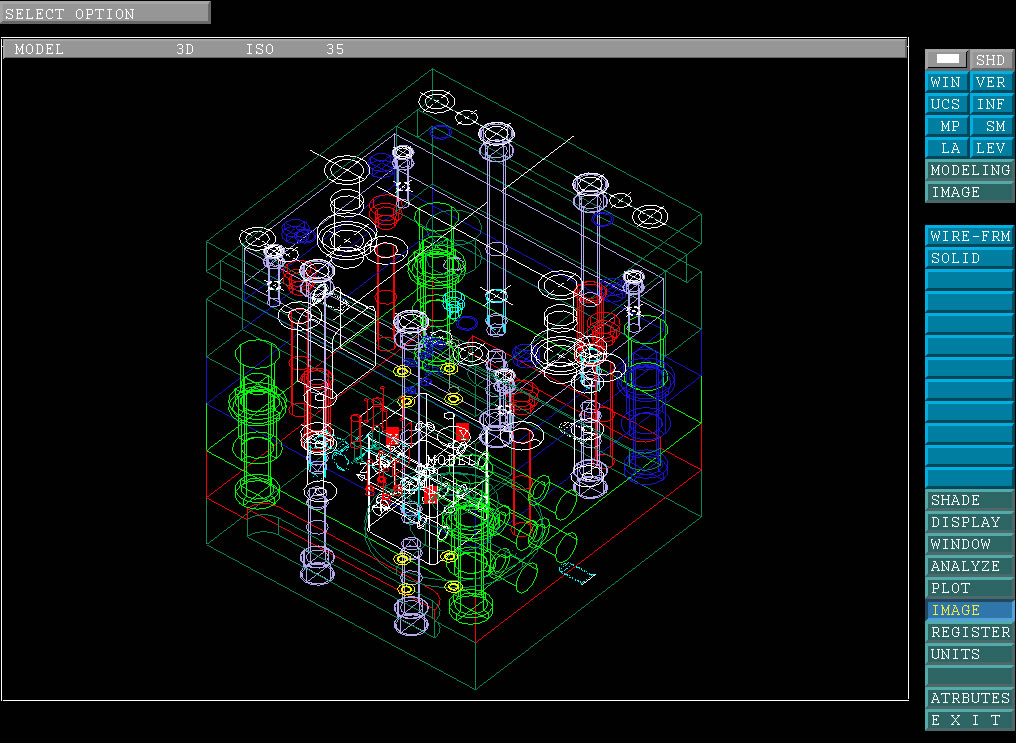

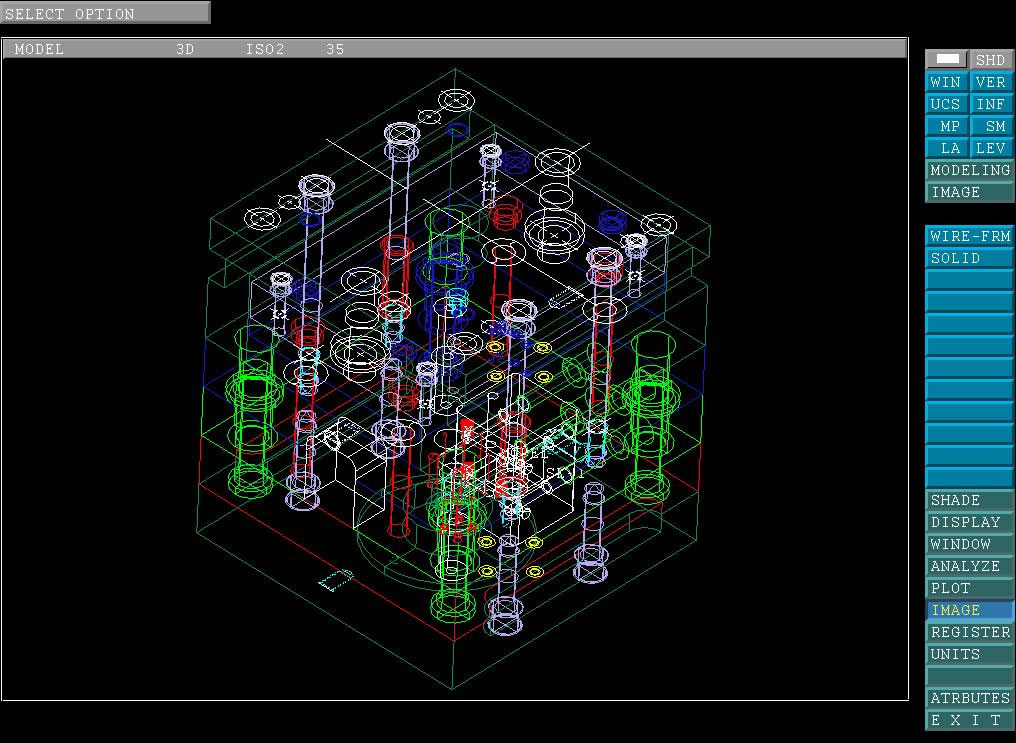

mold designs are done by our internal mechanical engineering staff
and are fully 3-D. This 3D approach allows for interference checking
and correct design of all moving mold actions. We start with your
part geometry and if solid models are available we use your exact
surfaces to begin the design process. We prefer to use 3D solid
model geometry, and interface with all solid modeling systems via
STEP or IGES. If
the part is in a 2D format we may be required redraw some or all
of the part in 3D to check geometry and allow for CNC programming.
By using this 3D design approach even the smallest mold detail is
not overlooked, and is exactly what the customer specified. Marathon
Mold uses CAD/CAM software from Cimatron. This software allows for
the design and NC programming to be done in the same file. This
concept reduces time and errors of translation.
Marathon
Mold is an expert at manufacturing of complex surface parts. If
your parts have highly complex surfaces trust the experts at Marathon
Mold with your next project. |
